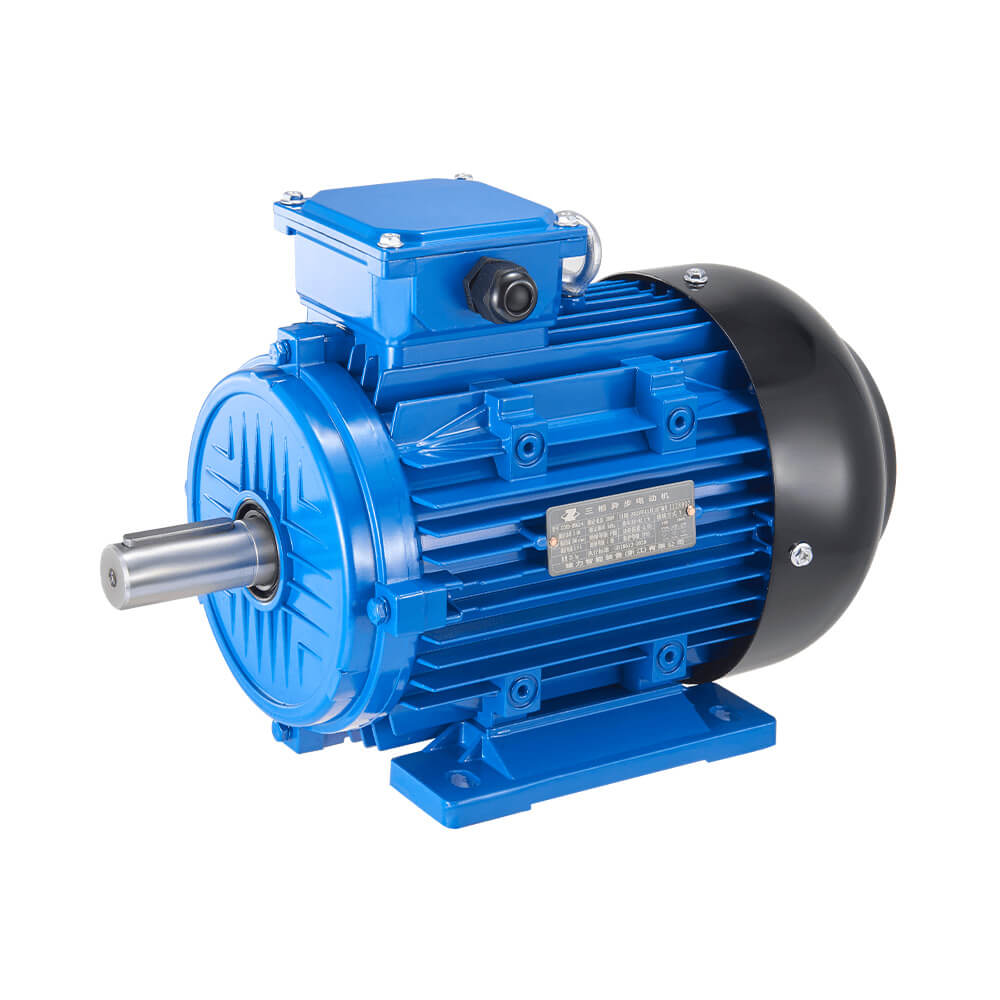

IE5 Series Asynchronous Motor IE5-90S-4
IE5 High-Efficiency Three-Phase Asynchronous Motor IE5-90S-4
Rated voltage: 380V
Rated frequency: 50Hz
Rated power: 1.1kW
Rated speed: 1500 r/min
Rated current: 2.2A
Efficiency grade: IE5-89.5%
Power factor: 0.95
Energy efficiency class: Level 1
Insulation class: F
Protection class: IP55
Wiring method: Y-Connection (380V)
Weight: 11.4kg
Executing standard: GB18613-2020
INDUSTRIES
- Water Treatment
- Air Handling
- Chemical & Metallurgy
- Textile Industry
- Paper Milling
- Food & Beverage & Pharmaceutical
- Energy; Oil; Gas; Petrochemical
- Construction
- Smelt Industry
- Steel Plants
APPLICATIONS
- Pumps Motors
- Compressors Motors
- Gearbox Motors
- Energy Saving Motor For Industrial Sewing Machine
- Blower Motors
- Paper Milling Motors
- Grain Mill Motors
- Crusher Motors
- Lifter Motors
- Pool And Spa Pump Motors
